Description

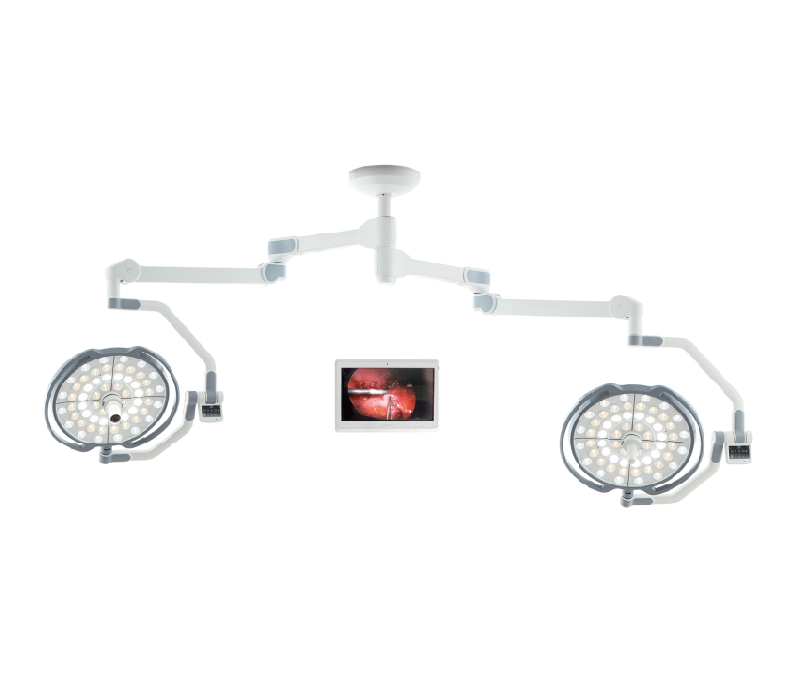

While the high-resolution camera provides good quality images, the monitor provides the opportunity to see the surgical site more clearly, also the monitor can be used for educational purposes. The light intensity of 160,000 Lux provides a clear view of the surgical area and does not cause eye fatigue. The AIM feature minimizes shadow formation by turning off the light on the blocked quarter of the operating light. When using this feature, the light intensity does not decrease and the power of the blocked area is transferred to the other quarters.
| Technical Features | |
| Max. Illumination power, in 1 m | 160.000 Lux |
| Diameter of lighthead | Ø670 mm |
| Color temperature | 3000 K – 5000 K |
| Color rendering index, Ra CRI | 96% |
| Dimming Range | % 1 – 100 |
| Light Field Diameter d10 | 24 – 36 cm / 9.5”- 14.2″ |
| Light Field Diameter d50 | 13 – 28 cm / 5.1” – 11” |
| Number of LED modules | 60 |
| Lifetime of LED | >60.000 h |
| Degree of turbulence (standard value 37.5% max.) | 29% |
| Depth of the volume of light L1 + L2 at 20% | 130 cm / 51.2” |
| Depth of the volume of light L1 + L2 at 60% | 76 cm / 30” |
| Camera | 1080p Full HD Camera |
| Irradiance at nominal illuminance | 200 W/m2 |
| Additional options | Touch Screen Pro Control Unit, Camera, Monitor, Battery Back Up |
