Description

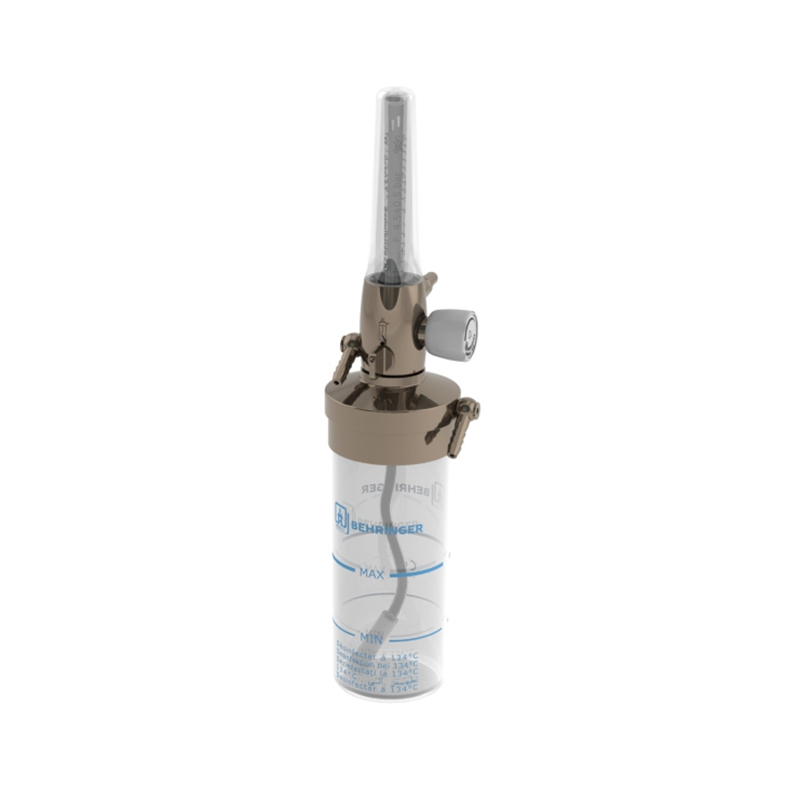

Variable area Elite flowmeter complete with humidifier and integrated switch for oxygen; scale from 0-15 l/min; equipped with a switch for selecting the desired oxygen flow: dry from the hose connection or wet through the integrated humidifier; it can be connected to the medical gas outlet through suitable probein accordance with AFNOR NF S 90-116, DIN 13260-1, UNI 9507, BS 5682, SS, G 1/4 „M DX thread; the device allows, by adjusting the needle valve, a flow from 0-15 l / min at a pressure of 4,5 bar.

Chemically nickel-plated aluminum body.
AISI 316 stainless steel float.
N.One inlet with standard probe or G 1/4″ M R thread.
N.One G 1/4” M R threaded outlet.
Brass adjuster knob with NYLON 6.6 terminal unit.
Swivel hose connection Ø6mm for dry oxygen.
Internal graduated rotary meter column and external MAKROLON 2458 polycarbonate column.
EPDM and silicon O-Ring.
ABS rail clamp
PVC medical hose Ø6×12.
Humificator jar in APEC with nickel plated aluminum cap.
Silicon hose.
Polyethylene bubble diffuser.
