Description
Product description

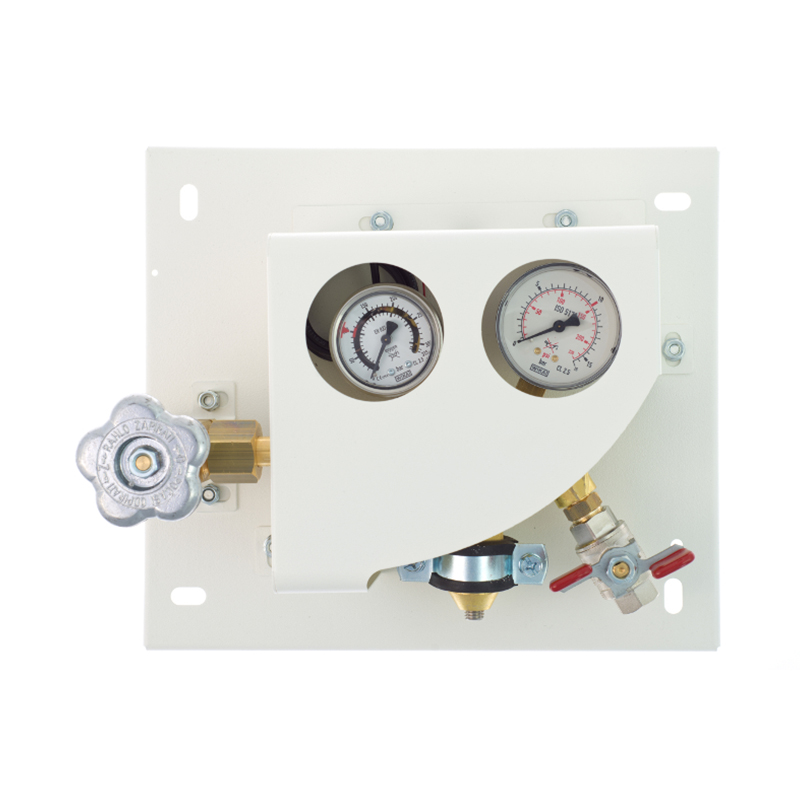

Third source panel consisting of a single reducer EURO/A model, two pressure gauges, a High Pressure shut-off valve, gas specific inlet connection, a Ø10 mm weld-on pipe connector on the outlet; its maximum capacity in Nitrogen at 7,5 bar outlet pressure is 48 Nm³ / h, 800 Nl / min.
The High Pressure gauge of the reducer is electrically contacted, pre-calibrated with a threshold at 100 bar (30 for N2O and CO2) and can be connected to an alarm control unit to signal manifold empty.
The framework is protected from atmospheric agents through a metal structure in white painted steel with windows that allow the display of the gauges.
To facilitate wall fixing, all the components are installed on a white painted steel plate.
