Description

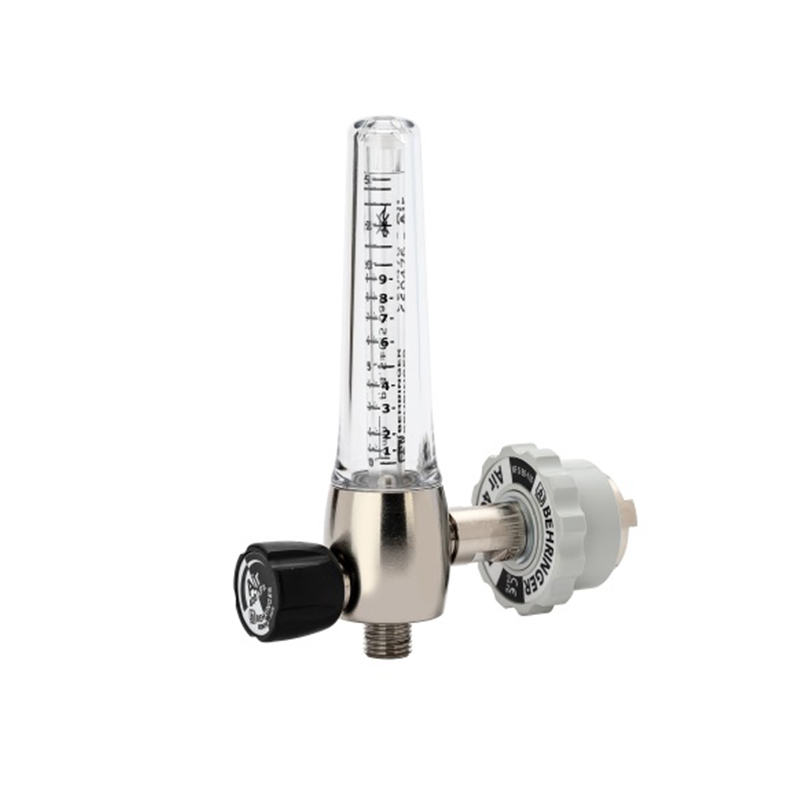

The flowmeter is used to supply medical gases such as air or oxygen; it can be connected to the gas distribution system using suitable AFNOR NF S 90-116, DIN 13260-1, UNI 9507, BS 5682 compliant probes or probes with a G 1/4″ M R thread; the adjuster knob on the device can be used to regulate the flow from 0 l/min to 15 l/min at 4,5 bar. The flowmeter outlet is G 1/4″ M R threaded or M12x1,25 M R.
Components
Chemically nickel-plated aluminum body.
AISI 316 stainless steel float.
N.One inlet with standard probe or G 1/4″ M R thread.
N.One G 1/4″ M R or M12x1,25 M R threaded outlet.
Brass adjuster knob with NYLON 6.6 terminal unit.
EPDM or silicon O-Ring.
Internal graduated rotary meter column and external MAKROLON 2458 polycarbonate column.
