Product description

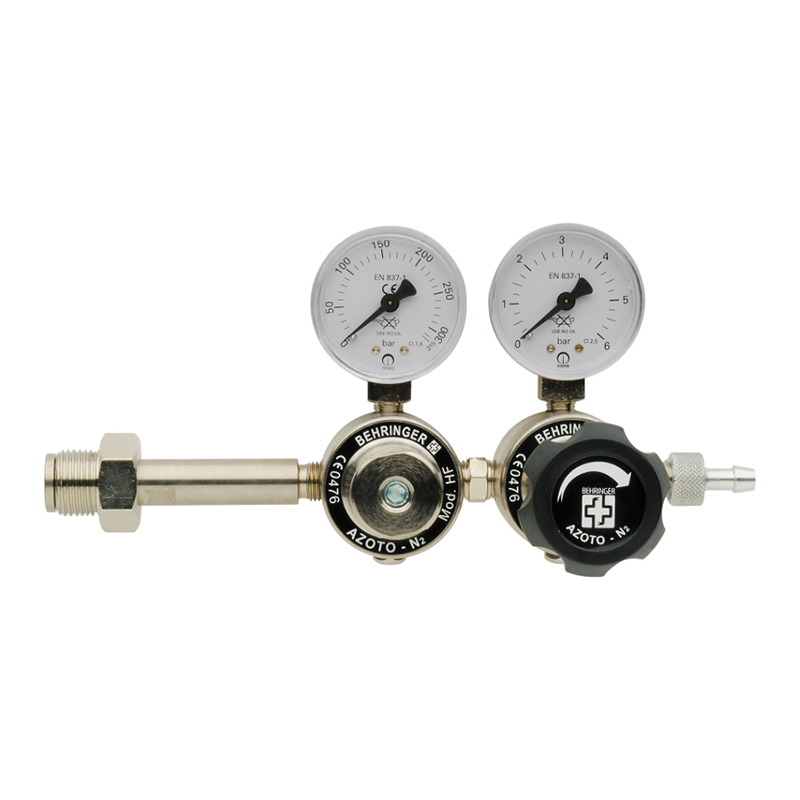

Two-stage pressure regulator for cylinder, suitable for use with medical gases, with two reducers in cascade to have a more stable outlet pressure and flow; is equipped with two pressure gauges to show cylinder pressure and operating pressure.The device is made up of two HF pressure reducers with chemically nickel-plated CW614N brass bodies and integrated overpressure discharge valves: the first reduces the cylinder pressure to a fixed pressure of 12 bar, the second allows the user to adjust the outlet pressure between 0.2 bar and 2 bar.The 2-stage system is designed to optimally stabilize the regulator outlet pressure and should be chosen for operating pressures lower than 2 bar and that require stable and precise dispensing.Maximum inlet pressure is 200 bar, the outlet pressure is adjustable up to 2 bar.Inlet connection is specific to the gas type (see table), outlet connection is G1/4″ M R.Its maximum capacity at 2 bar outlet pressure is 2,4 Nm³/h, 40 Nl/min.
Components
N.One HF High Pressure regulator with chemically nickel-plated CW614N brass body and adjustable calibration.
N.One HF Low Pressure regulator with chemically nickel-plated CW614N brass body and adjustable calibration.
ABS adjustment knob.
N.One gas-specific inlet.
N.One G1/4″ M R outlet.
N.One overpressure discharge valve, built into the pressure regulator, pre-calibrated and with drain channel, G1/4″ M R.
N.One High Pressure gauge with range according to the gas used, class 2.5.
N.One Low Pressure gauge with range according to the gas used, class 2.5.
N.One sintered bronze inlet filter with filtration grade > 100 mm Stainless steel springs.
VITON O-Ring for O2, NBR O-ring for other gases.
NYLON seal seat for O2, TEFLON seal seat for other gases.
VITON O-Ring for O2, NBR O-ring for other gases.
