Description

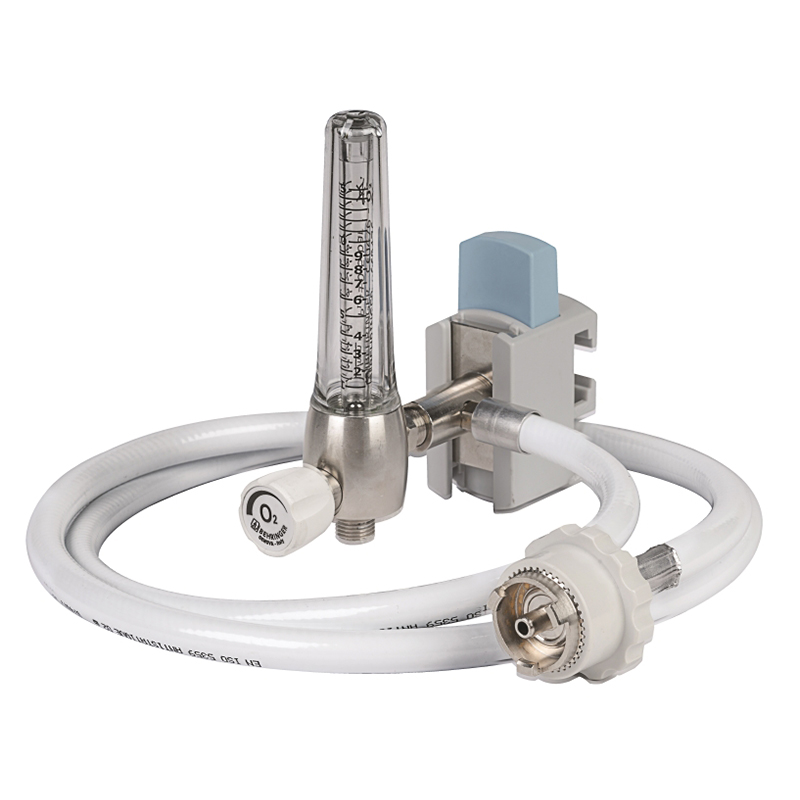

High flow rate variable area flowmeter; scale from 0 – 30 l/min; it can be connected to the medical gas distribution plant by means of suitable couplings in accordance with AFNOR NF S 90-116, DIN 13260-1, UNI 9507, BS 5682, SS, G 1/4 „M DX thread; cocmplete with clamp in ABS for fixing on instrument rail with specific gas connection; the device allows, by adjusting the needle valve, a flow from 0 to 30 l/min at a pressure of 4.5 bar.
Components
Chemically nickel-plated aluminum body.
AISI 316 stainless steel float.
N.One inlet with standard probe or G 1/4″ M R thread.
N.One G 1/4″ M R threaded outlet.
Brass adjuster knob with NYLON 6.6 terminal unit.
Internal graduated rotary meter column and external MAKROLON 2458 polycarbonate column.
EPDM and silicon O-Ring.
ABS rail clamp
PVC medical hose Ø6×12.
